Introduction:

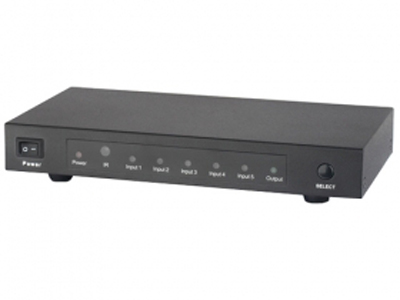

The 5x1 HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the five sources to display unit.
Five inputs accommodatethe simultaneous connection of up to five high definition video sources, such as satellite systems and HD DVD players.
The output sends the high definition audio/video signals to a high definition display.
Switching is done via the IR remote that is provided with the unit. Specification
Signal Inputs/Output
Input Video Signal: 0.5-1.0 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Maximum Single Link Range: 1920X1200, 1080P
Output Video: HDMI 1.3b + HDCP 1.0/1.1
Video format supported:
VGA 640x480,800x600,1024x768,1920x1200
DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P
Digital Signal I/O
HDMI Compliance:HDMI 1.3b
Operating Frequency
Video Amplifier Bandwidth: 2.5Gpbs/250MHz
Frequency: Up to250MHz
Resolutions(HDTV)
Interlaced(50&60Hz): 480i,576i,1080i
|
