Introduction:

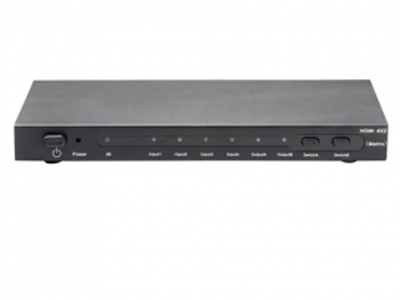

HSS0402 Matrix routes high definition video in multiple resolutions up to 1080p plus multichannel digital audio from any of the four HDMI sources to two displays.
Two outputs give you the choices of sending high definition audio and video signals up to two displays. Any four to any two matrix switching allows for maximum versatility for integrated systems.
The 4x2 HDMI Switcher eliminates the need to disconnect and reconnect sources to a display equipped with one input. It works with HD-DVD players, Blue Ray DVD, PS3, and satellite set top boxes that connect to two HDMI displays. Every source is accessible at all times by any display by selecting it with an IR remote.
Specification
Signal Inputs/Output
Input Video Signal: 0.5-1.0 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Maximum Single Link Range: 1920X1200, 1080P
Output Video: HDMI 1.3b + HDCP 1.0/1.1
Video format supported:
VGA 640x480,800x600,1024x768,1920x1200
|
|
|
