Introduction:

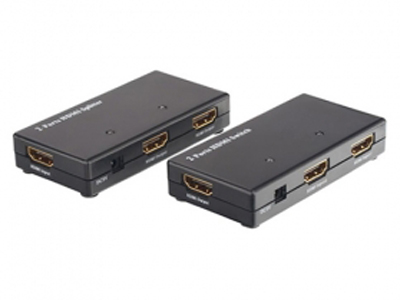

The HSP0102 is a tow outputs HDMI splitter
It distributes the HDMI input into tow identical outputs
These tow outputs are synchronized.
HSP0102 has the ability of buffering and amplifying series connection of HSP0102 achieves long distance transmission of HDMI signal of more than 15 meters when two or more HSP0102 are cascaded they can be used to create a larger distribution
HSP0102 offers solutions for HDTV retail and show site HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentationschool and corporate training environments. Specification
Signal Inputs/Output
Input Video Signal: 0.5 -1.0 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Maximum Single Link Range: 1920X1200, 1080P
Output Video: HDMI 1.2a+ HDCP1.0/1.1
Video format supported:
VGA 640x480,800x600,1024x768,1920x1200
DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P
|
